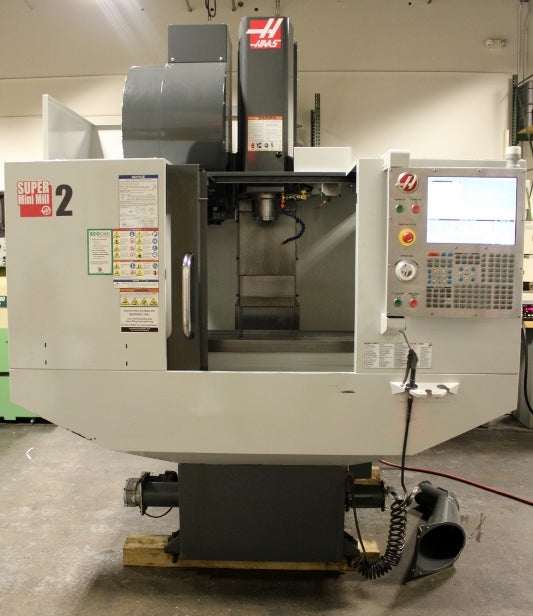

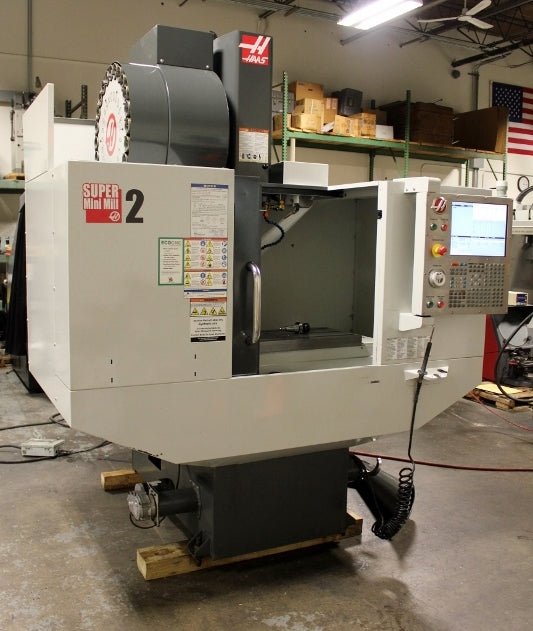

2011 HAAS Super Mini Mill 2

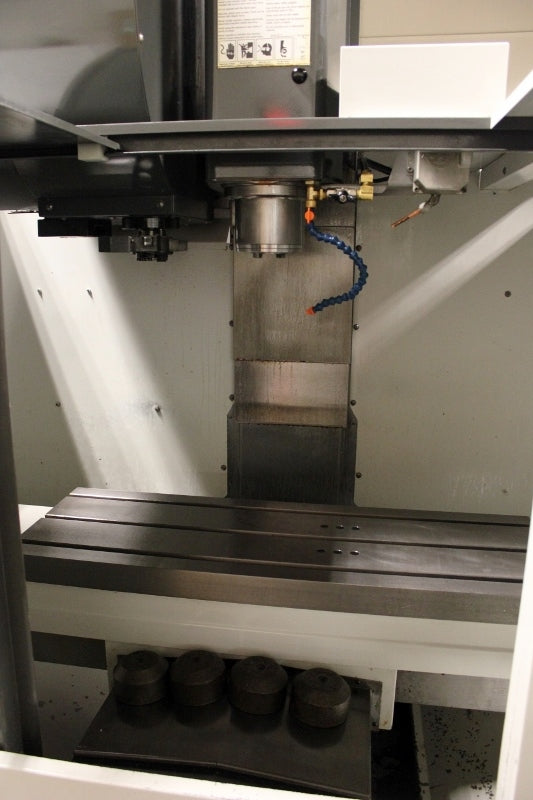

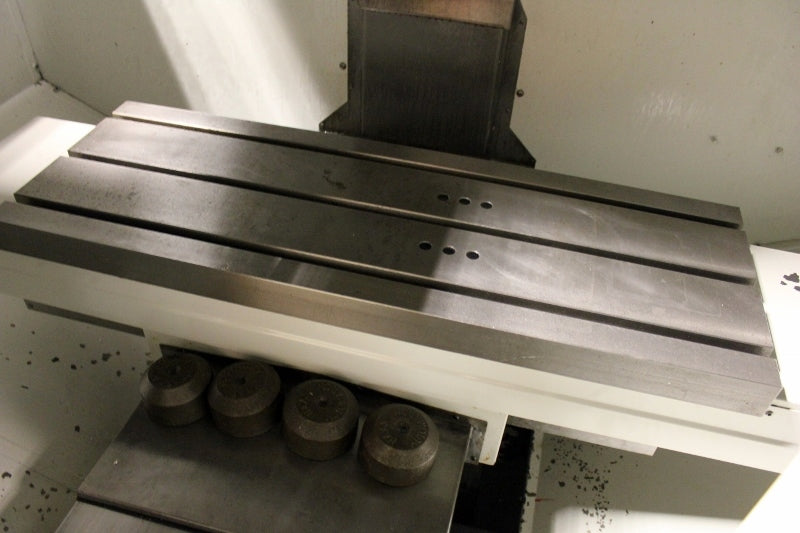

Table size.....................................14" x 40"
Maximum table load capacity.....................500 Lbs.
Travels:
         X-axis..............................20"
            Y-axis..............................16"
            Z-axis..............................14"
Minimum/Maximum distance from spindle to table....4"/18"
Spindle taper....................................CAT 40
Spindle speed range................................0-10,000 R.P.M
Rapid feed rates, all axes..........................1,200 I.P.M.
Maximum cutting rate...............................833 I.P.M.

Table size
Maximum table load capacity
Travels, X-axis
            Y-axis
            Z-axis
Minimum/Maximum distance from spindle to table
Spindle taper
Spindle speed range
Rapid feed rates, all axes
Maximum cutting rate         14" x 40"
500 Lbs.
20"
16"
14"
4"/18"
CAT 40
0-10,000 R.P.M.
1,200 I.P.M.
833 I.P.M.

Equipped With:

HAAS three-axis CNC with 15" color LCD, USB, and RS-232 serial ports
Brushless servo motors and servo amplifiers on all axes
(24) Station side-mounted automatic tool changer

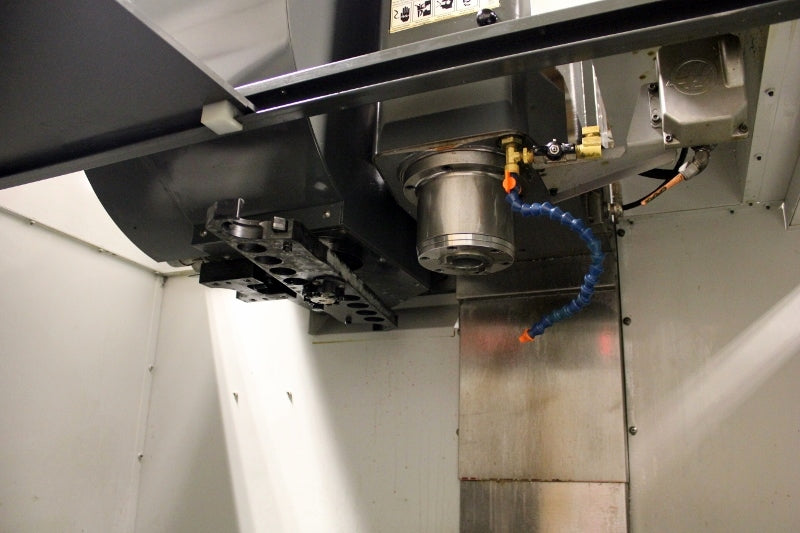

Programmable coolant nozzle
Rigid tapping
Chip auger
High-flow coolant system with 3/4 H.P. pump
20/15 H.P. (30 minute/Continuous Duty) AC Vector drive

Approximate Weight: 4,000 Lbs
