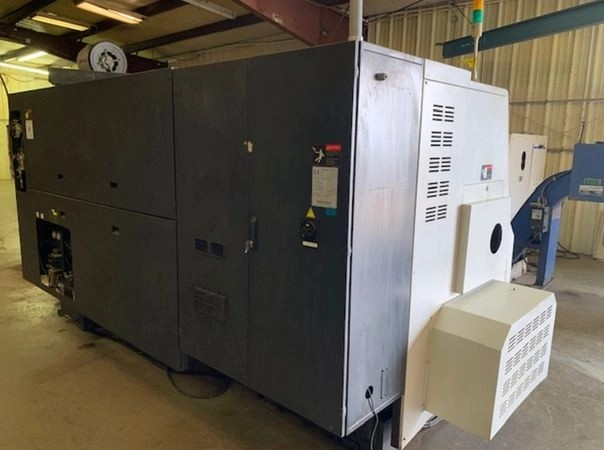

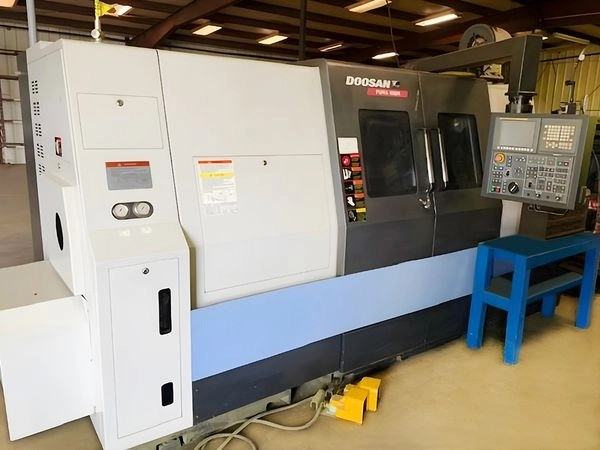

2011 DOOSAN PUMA 400MB

Max Turning Diameter: 21.7"
Max Turning Length: 38.5"
Max Swing: 30.3"
X Axis Travel: 14.3"
Z Axis Travel: 43.5"
Spindle Speed: 2,000 RPM
Spindle Motor: 50 HP
Bar Capacity: 4.5"
Spindle Bore: 5.51"
Milling Motor RPM: 3,000 RPM
Milling Motor HP: 15 H.P.
Turret Stations: 12 Stations (All Live)

EQUIPPED WITH:
Fanuc Oi-TD CNC Control
Live Tooling
Programmable Tailstock
Tool Setter
Steady Rest Bracket: NO STEADY REST
145 PSI Hi Pressure Coolant
LNS Heavy Duty Chip Conveyor
PCMCIA Interface
Foot Pedal Actuator Chuck & Tailstock
MICROIL® ™ Mist Collector
18" AUTOBLOK BB-N-400-140 BIG BORE AIR

Dimensions: 215" x 99" x 90"
Weight: 21,380 LBS
